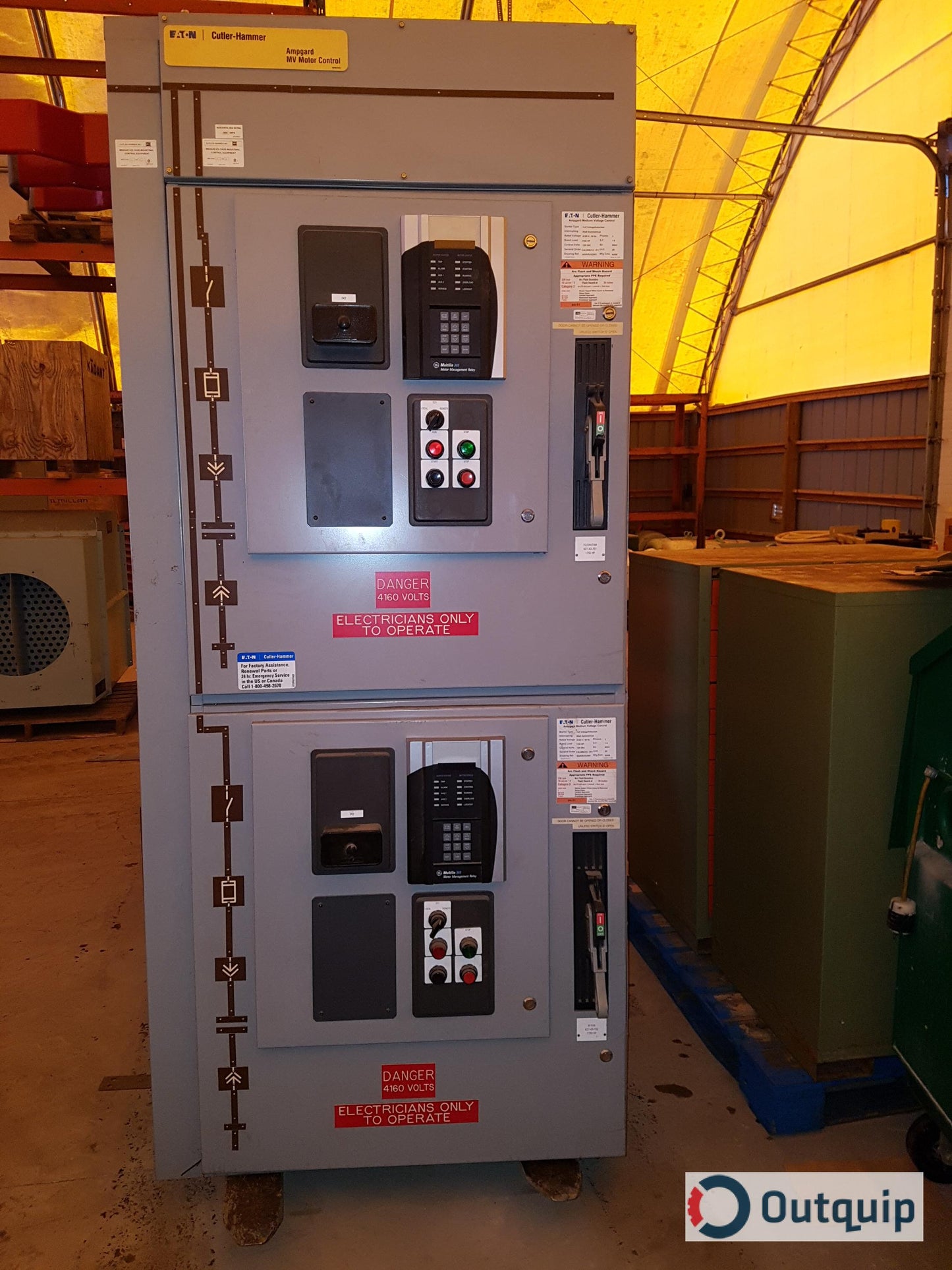

Cutler-Hammer Ampgard MV Motor Control w/ 2 x Full Voltage/Induction Starter 1750 HP & 2 X GE Multilin 369 Motor Management Relay

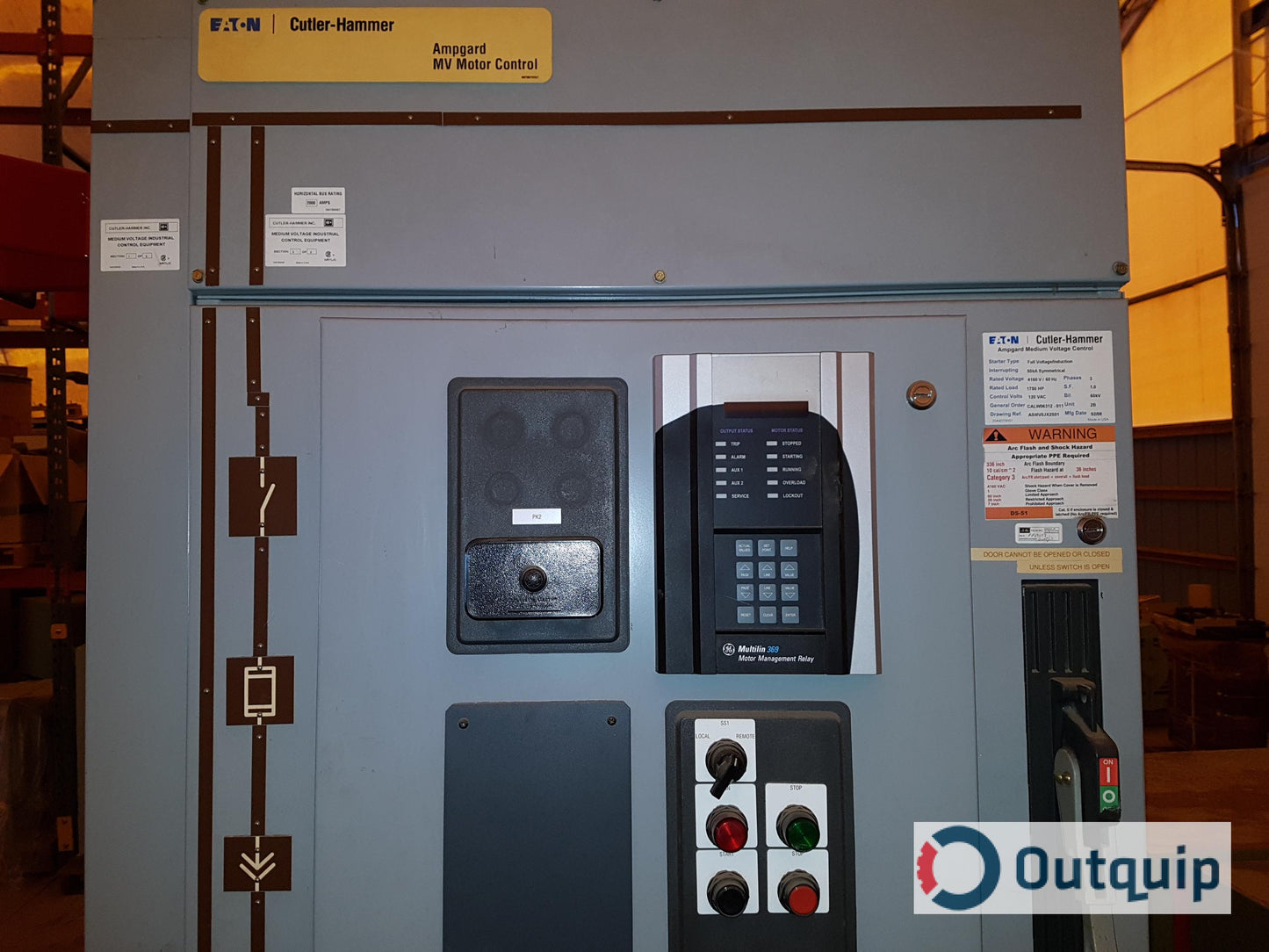

Cutler-Hammer
Ampgard MV Motor Control
(MV = Medium Voltage)
Horizontal Bus Rating 2000 AMPS
-- (upper)

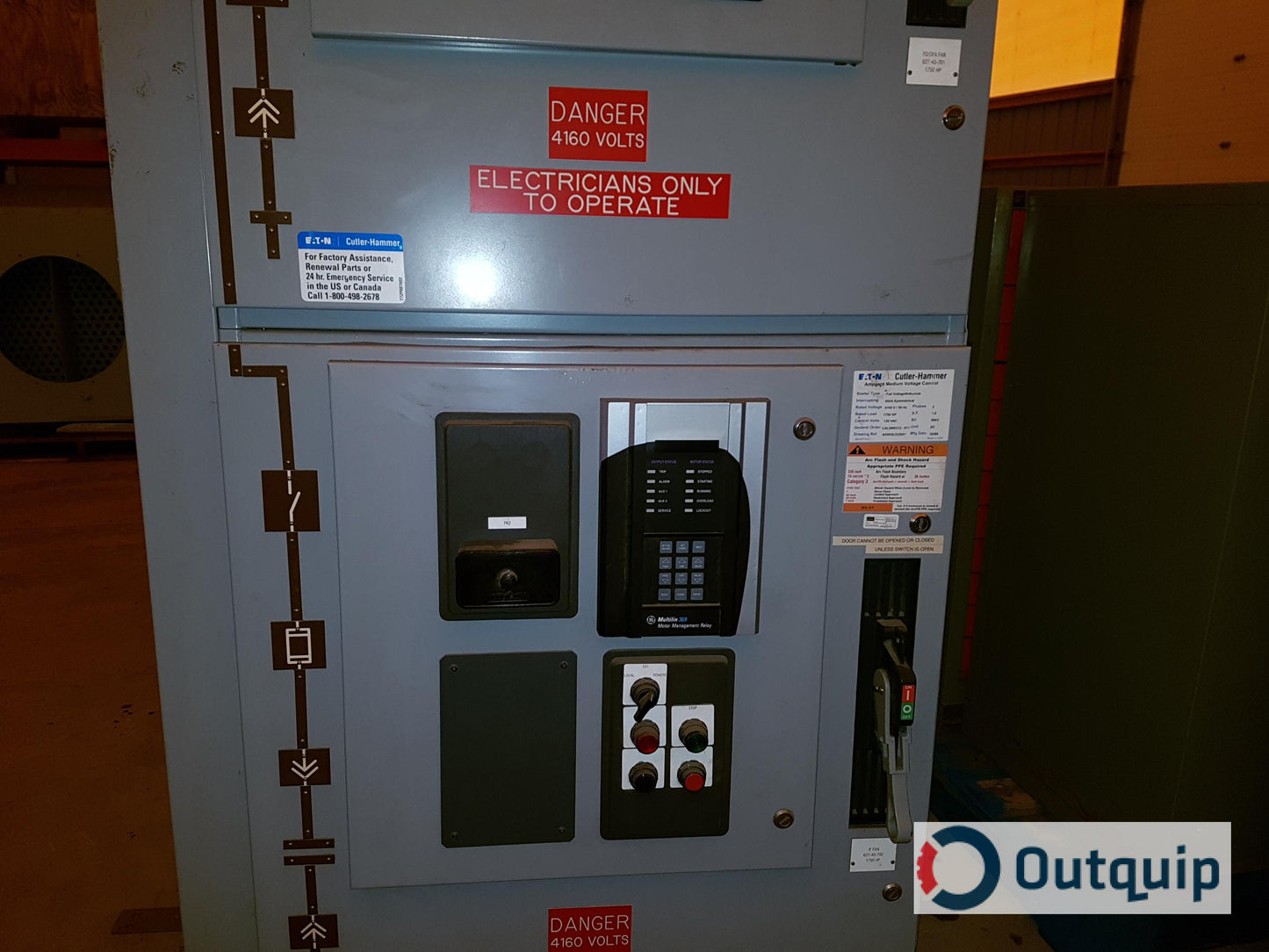

Cutler-Hammer
Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetricl
Rated Voltage: 4160v / 60 Hz / 3 Ph
Rated Load: 1750 HP
S.F.: 1.0
Control Volts: 120 VAC
Bil 60 Kv
G.O.: CALW06312-011
UNIT: 2B
DWG: ASMV0JX2S01
Mfg Date 2008Feb

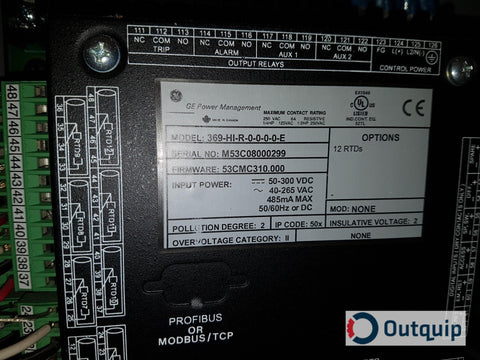

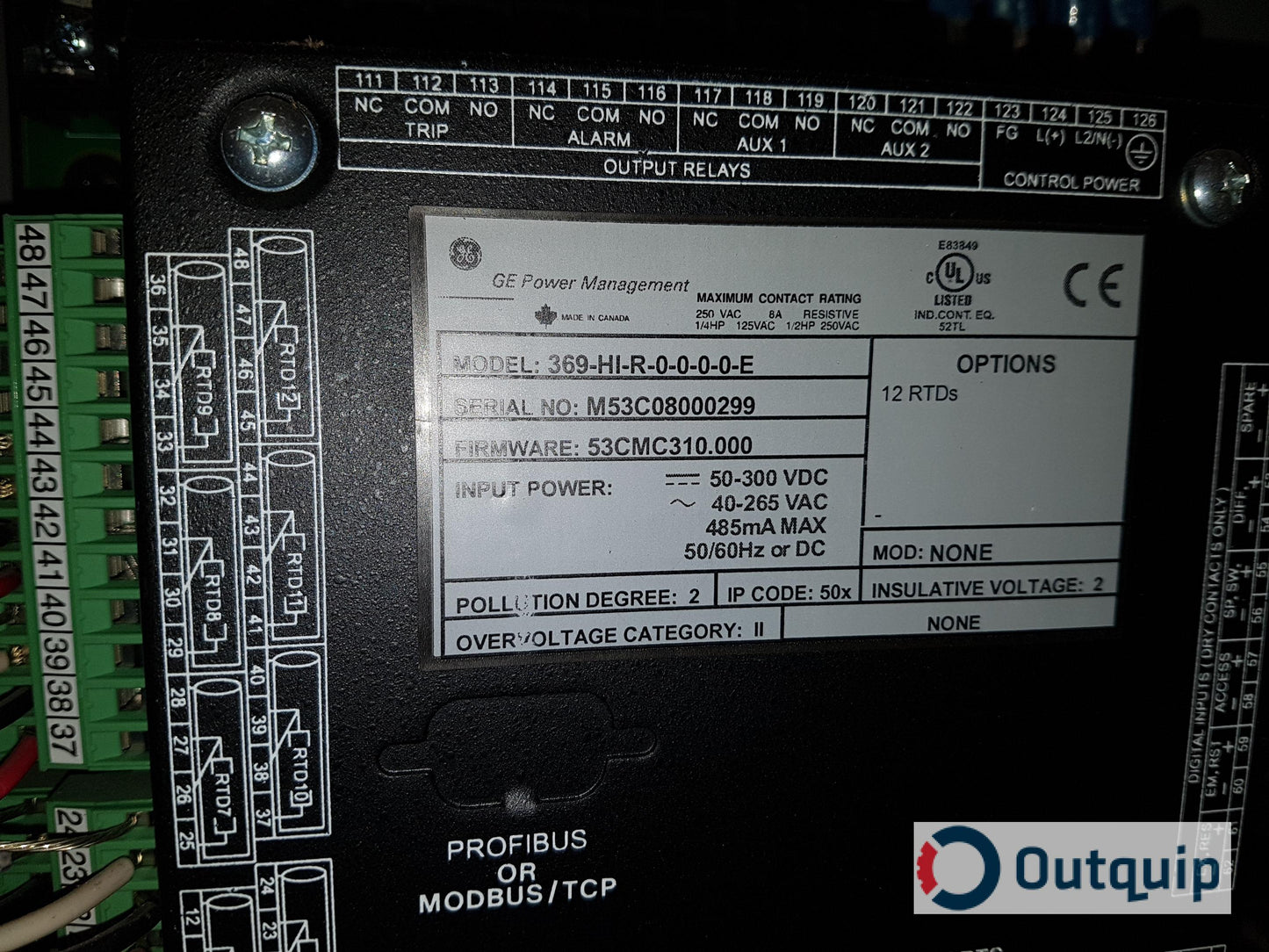

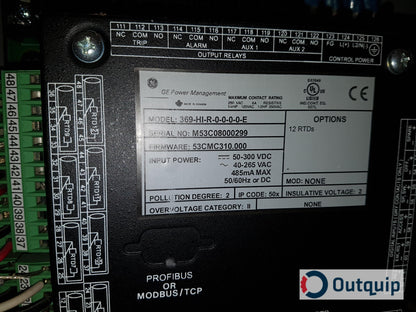

GE Multilin 369 Motor Management Relay
MODEL; 369-HI-R-0-0-0-0-E
SN: M53C08000299
FIRMWARE; 53CMC310.000
-- (lower)
Cutler-Hammer
Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetricl
Rated Voltage: 4160v / 60 Hz / 3 Ph
Rated Load: 1750 HP
S.F.: 1.0
Control Volts: 120 VAC
Bil 60 Kv
G.O.: CALW06312-011
UNIT: 2D
DWG: ASMV0JX2S01
Mfg Date 2008Feb
GE Multilin 369 Motor Management Relay
MODEL; 369-HI-R-0-0-0-0-E
SN: M53C08000300
FIRMWARE; 53CMC310.000
