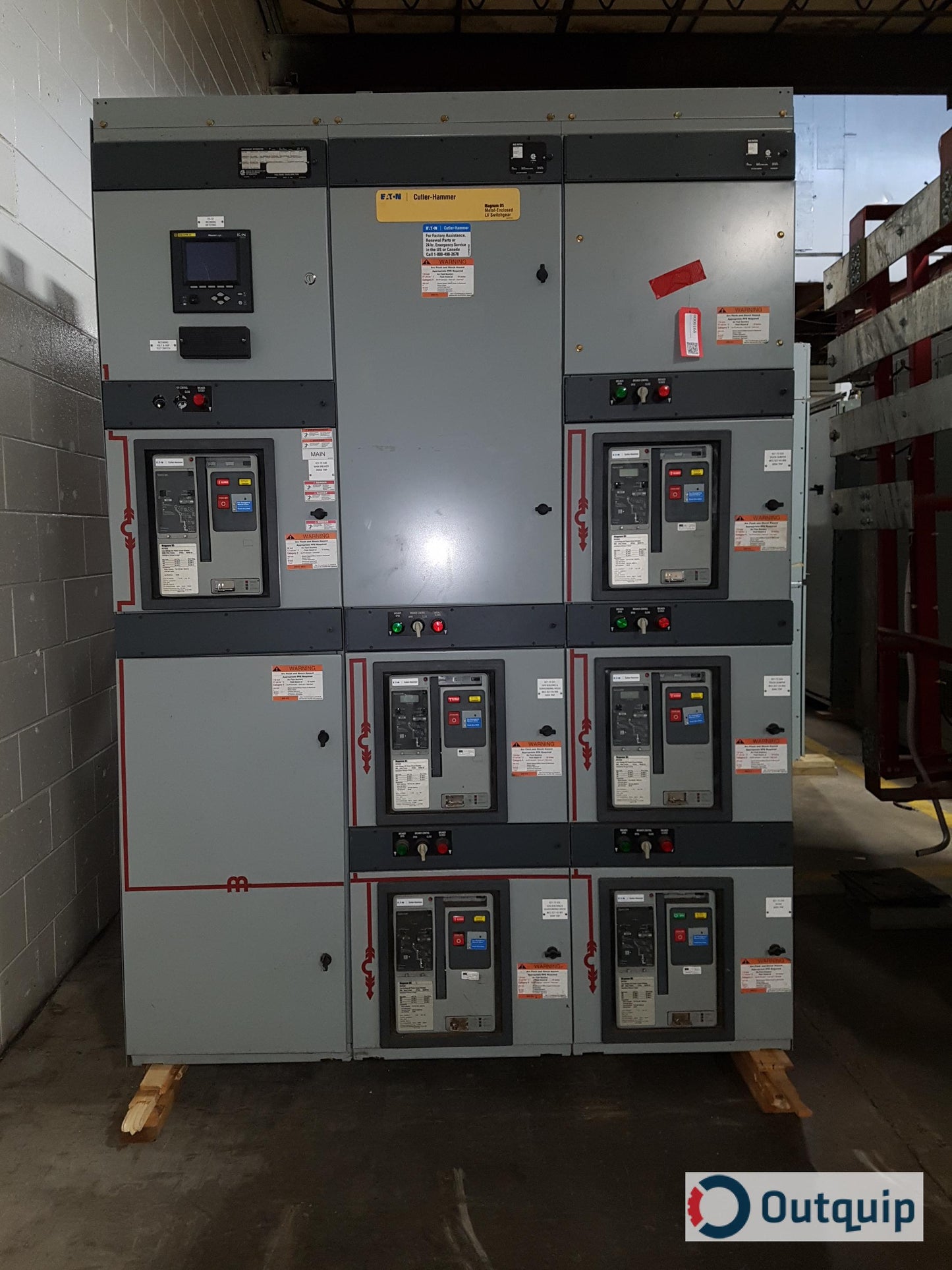

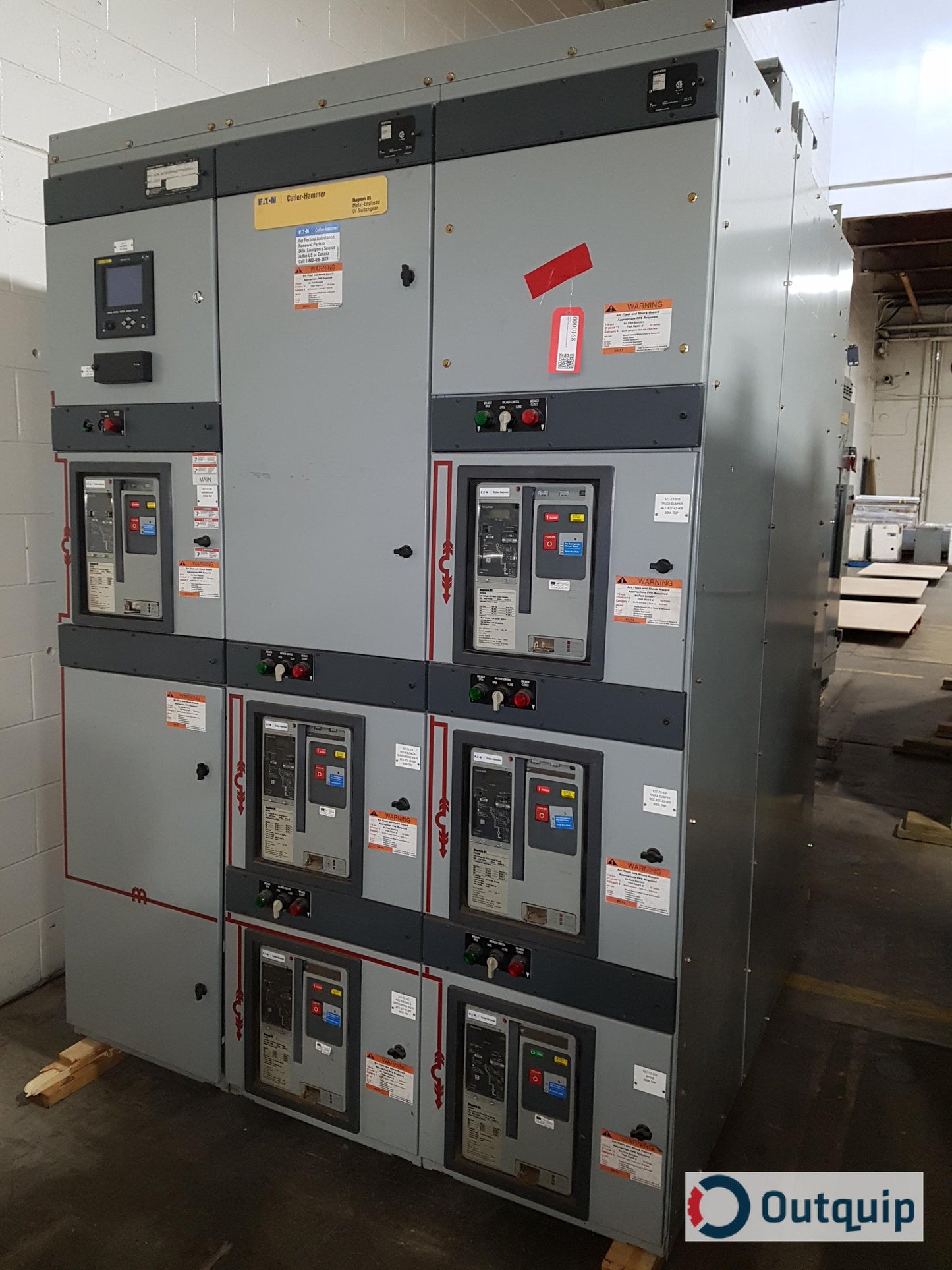

Cutler-Hammer Magnum DS Metal Enclosed LV Switchgear W/ 1 X Digitrip 520 Magnum DS MDS630 (3000A TRIP) AND 5 X Digitrip 520M Magnum DS MDS608 (600A TRIP) AND 1 X Square D PowerLogic ION 7550

Cutler-Hammer
Magnum DS
Metal Enclosed
LV Switchgear

600V
3 PH
CURR. MAX 3200
Short Circuit Current 65KA

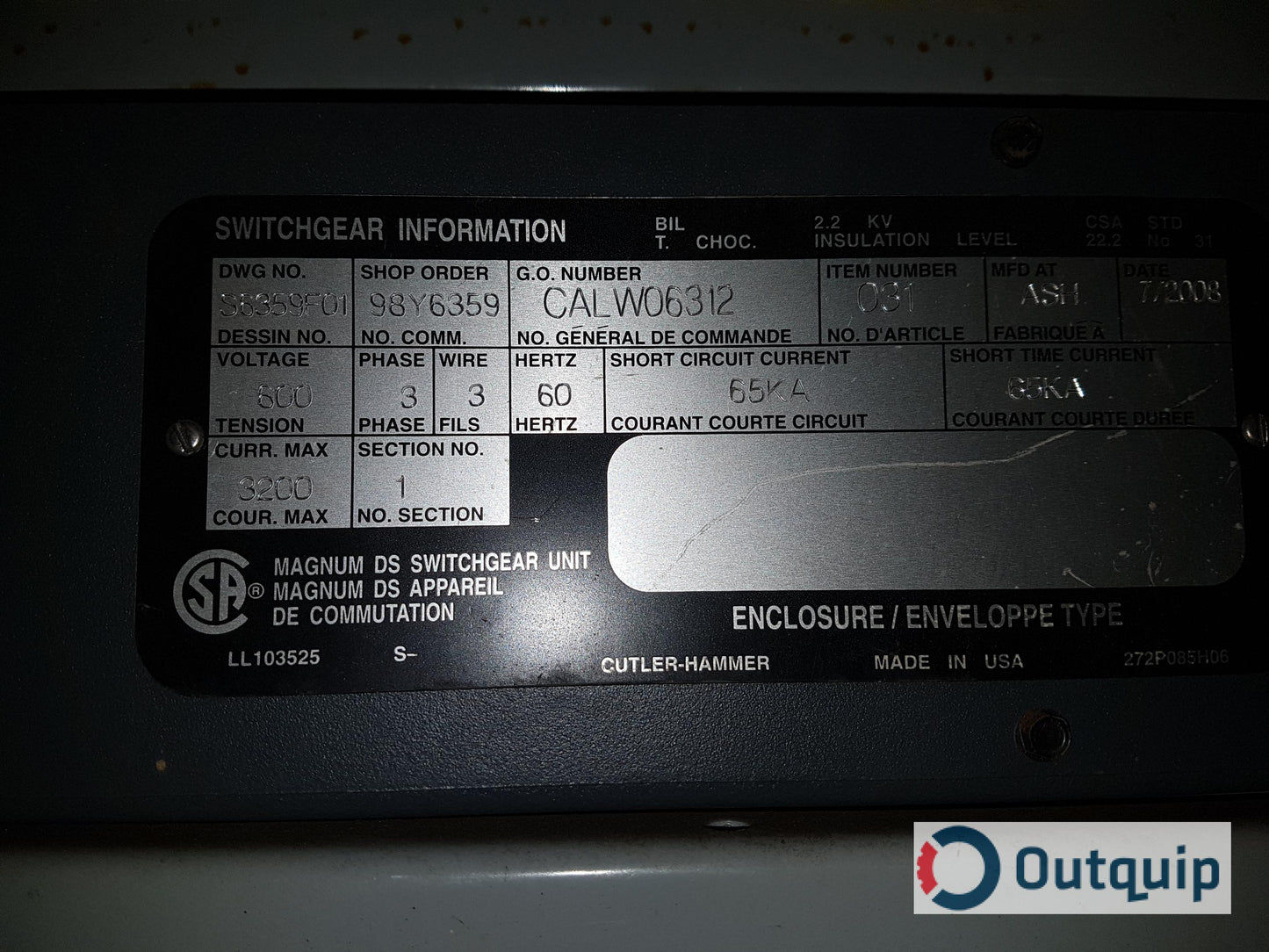

DWG NO: S6359F01
SHOP ORDER: 98Y6359
G.O. NUMBER: CALW06312
--
1 x
{
Square D PowerLogic ION 7550
}

1 x
{
Cutler-Hammer
Digitrip 520
Magnum DS
MDS630
Low Voltage AC Power Circuit Breaker
3000 Amp Frame 3 Pole 50/60 Hz
CAT#: MDS6303WEA 2252A NAN4V NNMAX
}
--
5 x
{
Cutler-Hammer
Digitrip 520M
Magnum DS
MDS608
Low Voltage AC Power Circuit Breaker
800 Amp Frame 3 Pole 50/60 Hz
CAT# MDS6083WEA 06MUA NAN4Y NNNAX
}
--
