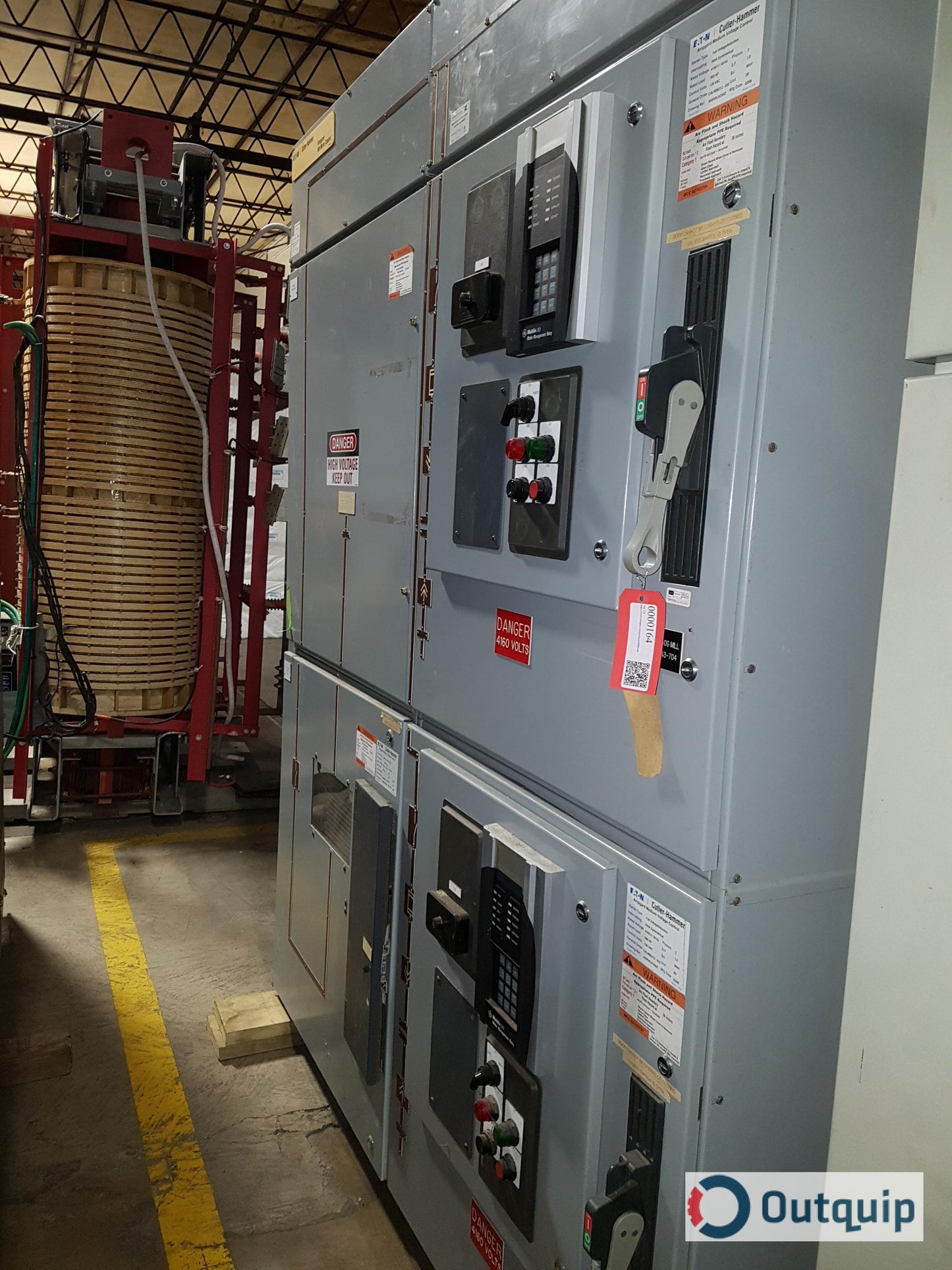

Cutler-Hammer
Ampgard MV Motor Control

(MV = Medium Voltage)

-- (1 lower)

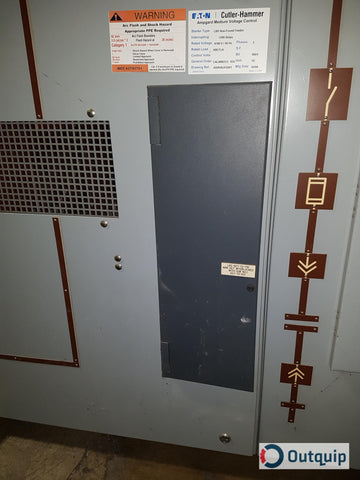

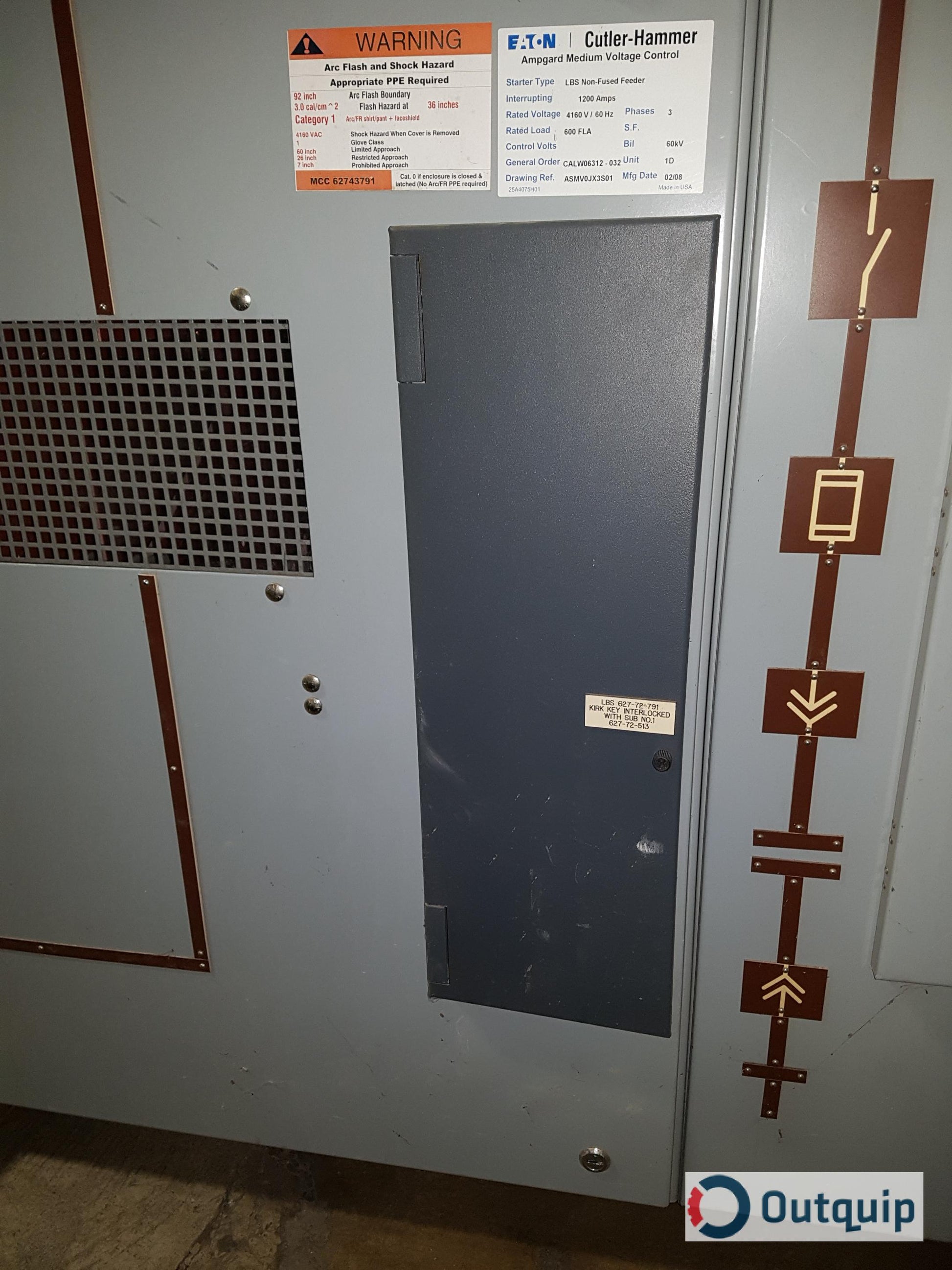

Cutler-Hammer
Ampgard Medium Voltage Control
Starter Type: LBS Non-fused Switch
Interrupting 1200 Amps
4160v / 60 Hz 3 Ph
Rated Load 600FLA S.F. 1.0
Bil 60 kV Bil: 60 kV
G.O.: CALW06312-032
DWG: ASMV0JX3S01.
Mfg Date 2008Feb
-- (2 upper)

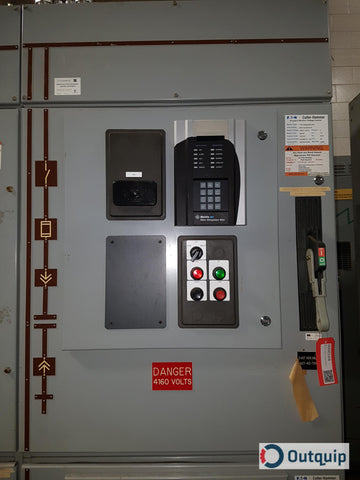

Cutler-Hammer
Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetricl
Rated Voltage: 4160v / 60 Hz / 3 Ph
Rated Load: 500 HP
Control Volts: 120 VAC
G.O.: CALW06312-032
DWG: ASMV0JX3S02
Mfg Date 2008Feb

GE Multilion 369
Motor Management Relay

MODEL: 369-HI-R-0-0-0-0-E
SN: M53C08000298
FIRMWARE: 53CMC310.000

-- (2 lower)

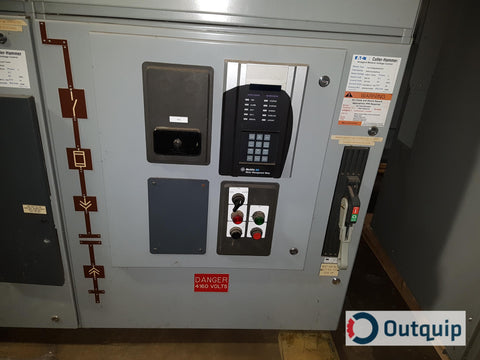

Cutler-Hammer
Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetricl
Rated Voltage: 4160v / 60 Hz / 3 Ph
Rated Load: 500 HP
Control Volts: 120 VAC
G.O.: CALW06312-032
DWG: ASMV0JX3S02
Mfg Date 2008Feb

GE Multilion 369
Motor Management Relay

MODEL: 369-HI-R-0-0-0-0-E
SN: M53C08000297
FIRMWARE: 53CMC310.000
--
